Art Direction, Set Design, Computer Drafting - Alien Empire

I acted as Production Design and Set Design, designing sets, space craft and props. The Asia financial crisis caused this low budget production to loose financing and production never began. Most of these drawings are AutoCAD © R12. Director: Tom Atchitson, 1997.

Note: These drawings are presented here for portfolio purposes only. These drawings are not available for sale or to be given away in hard copy or digitally in any scale. I will be happy to show hard-copy during a legitimate job interview for Set Designer.

Defender's desert camp. Made from a crashed space craft. Plan and elevations.

Plan & Elevation w/ Camera Angle Template

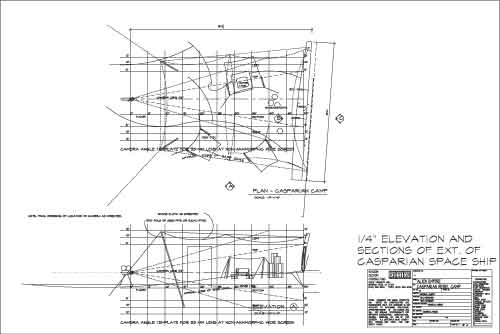

Defender's desert camp. Made from a crashed space craft. With camera angle template
super- imposed. Plan and elevations.

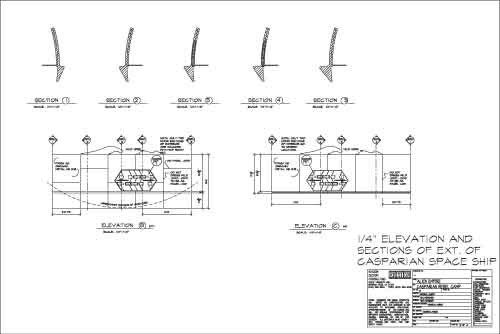

Crashed space craft. Elevations and sections.

Details

Crashed space craft. 3/4" and Full Size Details.

Details

Crashed space craft. 3/4" and Full Size Details.

Sewer set for the obligatory crawl through the sewer scene. This set was redesigned
for a rectangular section because the sona tube was too expensive.

Safe house. Bird's eye view made in AutoCAD.
